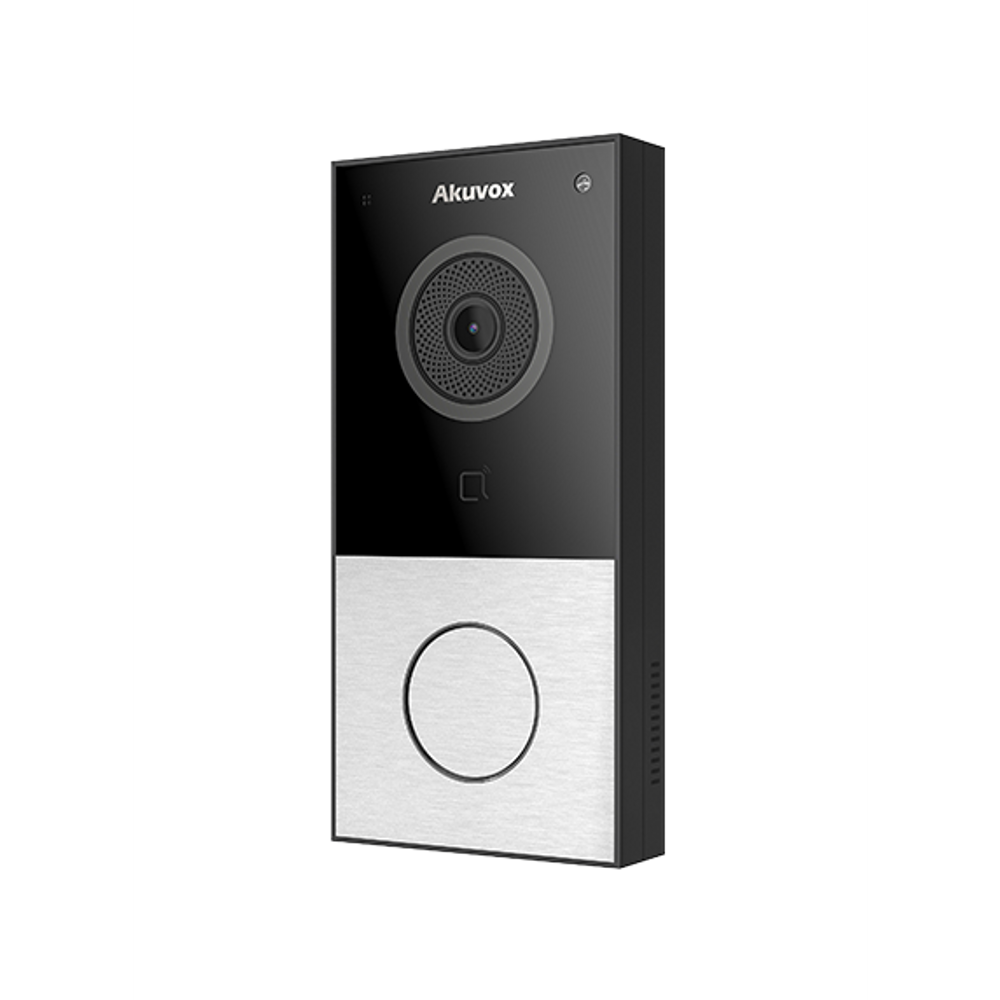

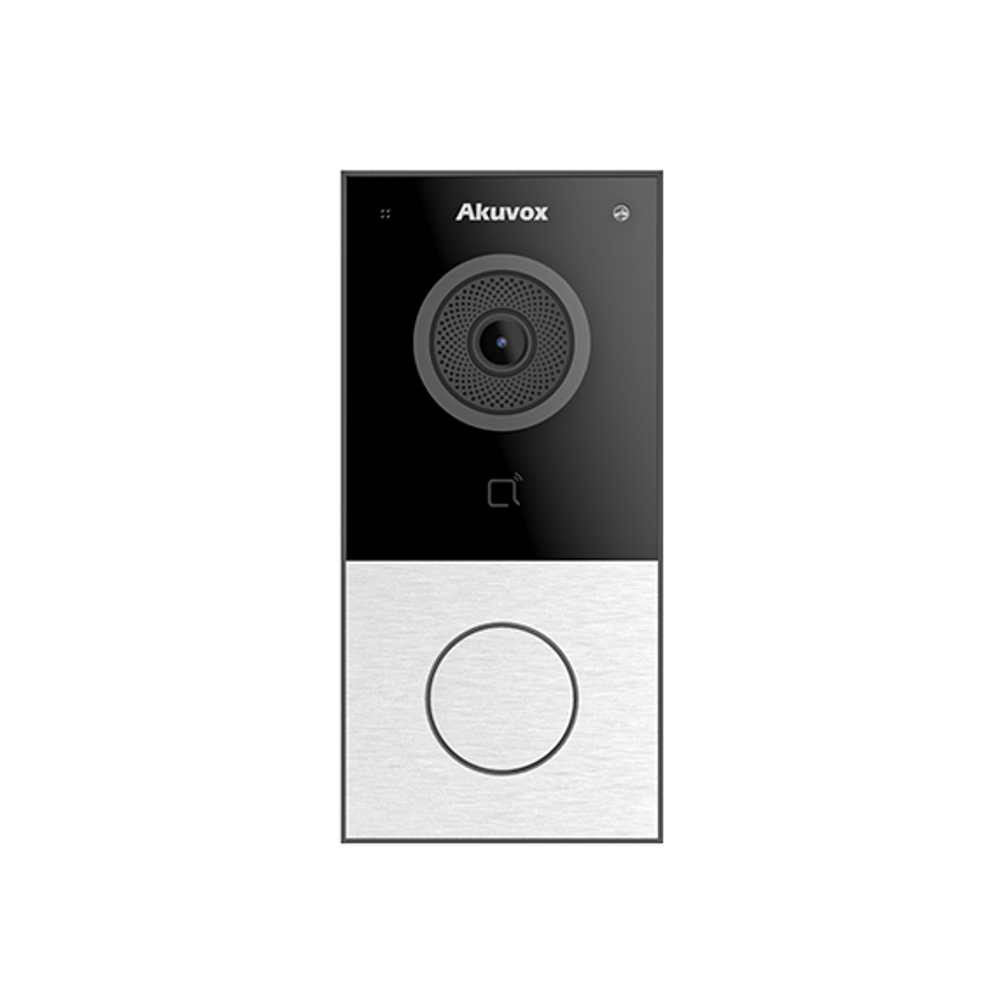

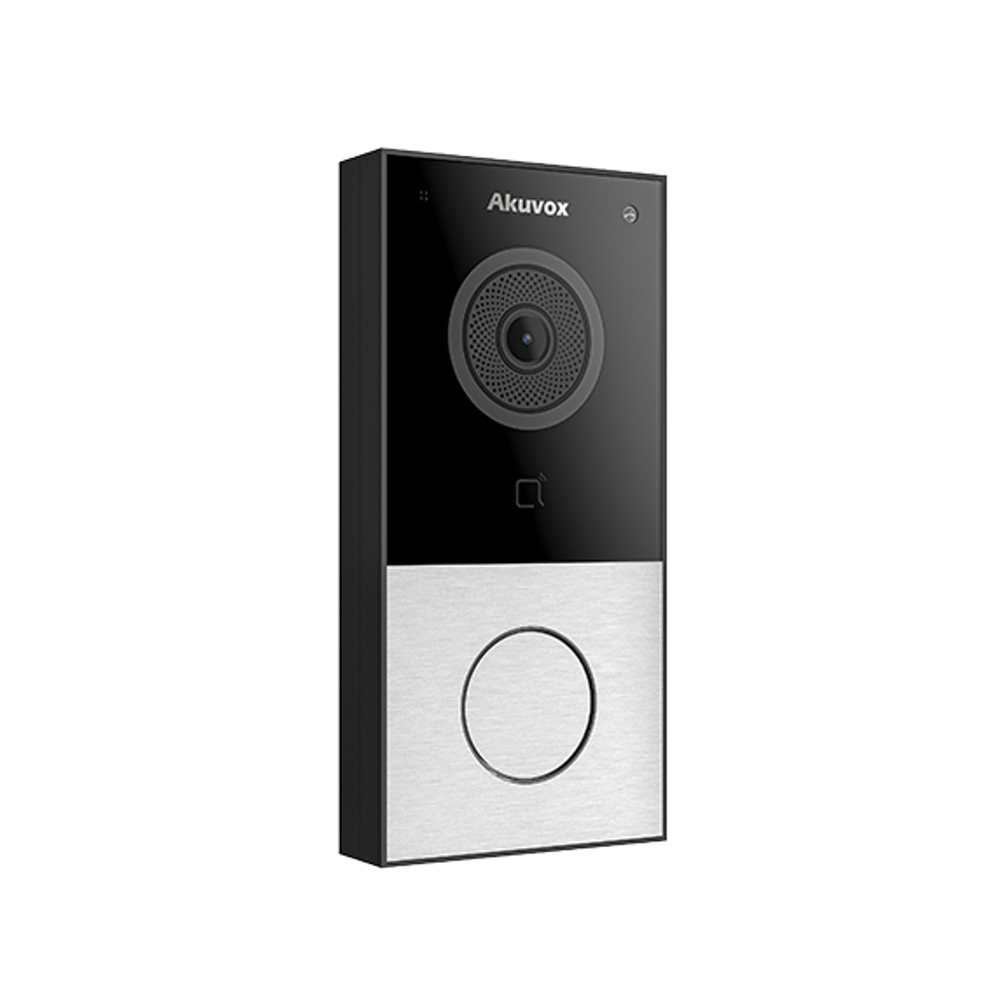

Name: E12S-2/C313W-2 - Akuvox 2 Wire Intercom Kit
Brand: Akuvox
SKU: E12S-2/C313W-2
Price: 599.00 NZD
Availability: InStock

E12S-2/C313W-2

$599.00

Tax included.

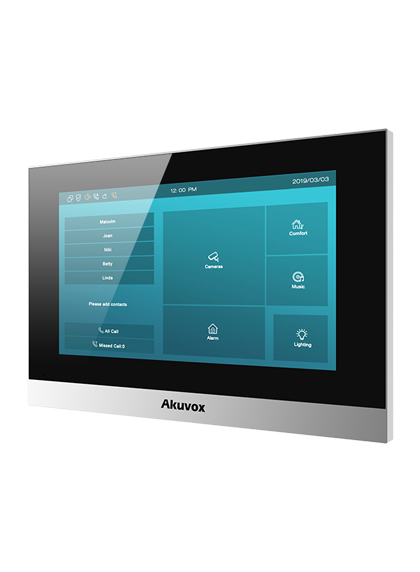

C313W-2

Physical & Power

Front panel: Plastic

RAM / ROM: 64MB / 128MB

Display: 7 Inch TFT LCD

Screen: 7 Inch capacitive touch screen

Wi-Fi: IEEE802.11 b/g/n, @2.4GHz

RS485 port: Support

Relay out: 1

Bell in: 1

I/O: 8

Microphone: -58dB

Speaker: 4Ω / 2W

2-wire ports: 2 pair

Ethernet ports: 1xRJ45, 10/100Mbps adaptive

48V DC connector (if not using NS-2)

Installation: Wall-mounted & Desktop

Dimension: 200.2x132.2x27.2mm

Working Humidity: 10~90%

Working Temperature: -10°C ~ +45°C

Storage Temperature: -20°C ~ +70°C
Touch Screen Display

Display Mode: Normally white, Transmissive

LCD Size: 7inch (Diagonal)

Resolution: 800x480

Contrast ratio: 500:1

Luminance: 220 cd/m²

Viewing Angle: 50° Left, 50° Right, 40° Upper, 50° Lower

Touch Screen: Projected capacitive
Audio

SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711μ, G.729

Broadband audio codec: G.722

DTMF: Out-of-band DTMF (RFC2833), SIP Info

Echo Cancellation
Video

Streaming formats: H.264
Networking

Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Deployment & Maintenance

Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Firmware upgrade

System logs (include door access logs)
Application Scenario

Old villas retrofit

Old apartment retrofit
